Bio-based Nylon PPA
Applications:
Suitable for general-purpose injection molding and extrusion applications, including those requiring high surface gloss, good lubricity, low warpage, and toughness, as well as high mechanical performance at elevated temperatures.
Application Scope:
Bathroom series products, faucets, shower heads, water pumps, etc.
Market Trends:Replacing metals with plastics to meet lead-free requirements and reduce costs.
Material Properties:
Polyphthalamide (PPA) plastics have a heat deflection temperature of over 300°C and a continuous use temperature of up to 170°C, meeting both short-term and long-term thermal performance requirements. They maintain superior mechanical properties—strength, stiffness, fatigue resistance, and creep resistance—across a wide temperature range and in high-humidity environments. Toughened PPA grades combine excellent toughness with a balance of hardness and flexibility, making them an ideal choice for fasteners requiring rigidity for single-use applications and flexibility for repeated use. Special grades are also available for applications requiring sprayable and electroplatable surfaces, flame retardancy, glycol resistance, and reflectivity.
Due to the amide groups in the para-position (1,4) of the benzene ring in its molecular structure, PPA is classified as a semi-crystalline engineering polymer. It bridges the gap between traditional thermoplastic engineering materials (such as polycarbonate, polyamide, polyester, and polyoxymethylene) and high-cost specialty polymers (such as liquid crystal polymers, polyphenylene sulfide, and polyetherimide), offering a balance of cost and performance. PPA exhibits superior mechanical properties, including strength, stiffness, fatigue resistance, and creep resistance, across a wide temperature range.
Reinforced Materials:
30% Glass-Fiber Reinforced PPA: For structural applications, glass-fiber reinforced grades offer higher stiffness, strength, and creep resistance at elevated temperatures.
Mineral-Filled PPA: Provides improved dimensional stability and flatness, with some grades suitable for electroplating and epoxy coating.
Impact-Modified PPA: Offers significantly improved toughness across a wide range of humidity and temperature conditions, comparable to super-tough nylon, while maintaining higher strength and stiffness.
Unreinforced PPA: Suitable for general-purpose injection molding and extrusion applications, including those requiring high surface gloss, good lubricity, low warpage, and toughness, as well as high mechanical performance at elevated temperatures.
Application Scope:
Bathroom series products, faucets, shower heads, water pumps, etc.
Current Main Solutions for Replacing Copper with Plastics
Application Requirements
Lead-free；High rigidity and high dimensional stability；Static burst pressure > 500 psi；Bending torque > 61 N·m；High thread strength: Thread torque > 61 N·m；Easy overmolding, tight sealing, and leak-proof；Hydrolysis resistance – Withstands 80°C hot water, 1.5-year material aging test；Compliance with different OEM requirements；Lifetime testing: CSA 500,000 to 1,000,000 thermal cycles (according to CSA standards)；NSF certification for cold and hot water.
Testing Method (Torque Test)
Testing Method (Air Tightness Test)
Testing Method (Bend Test)

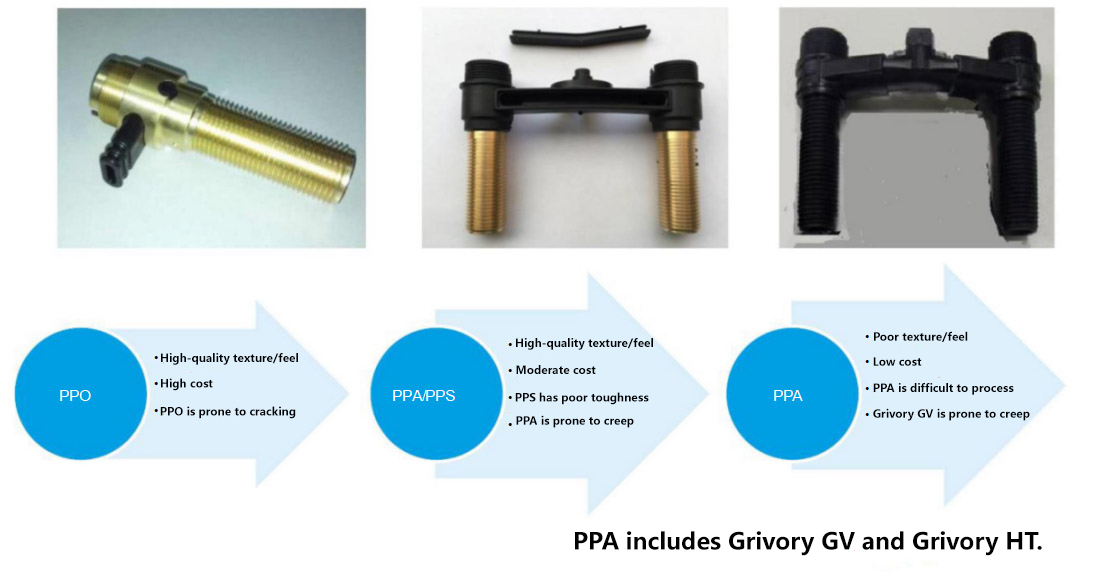

Customer Analysis

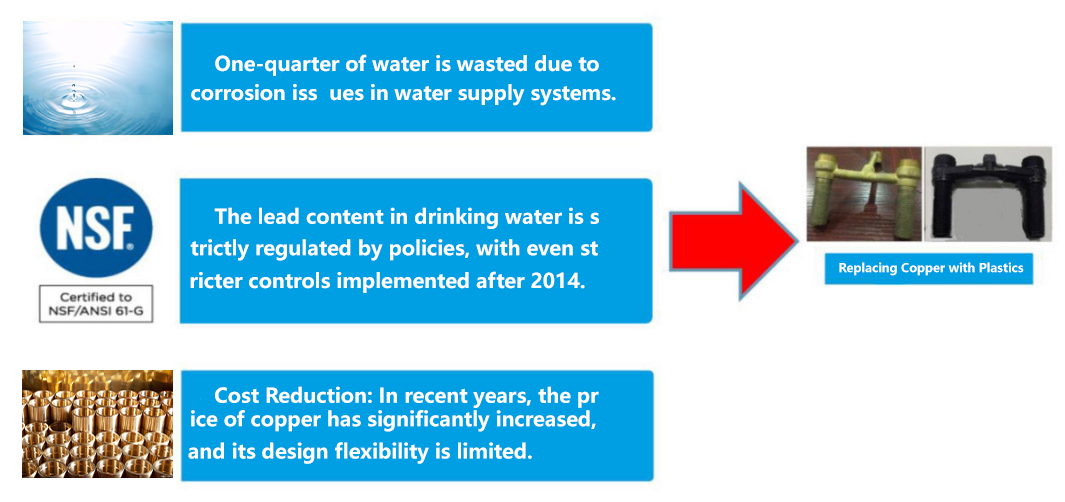

Stricter lead-free regulations have made most copper-based solutions non-compliant; rising metal prices have further increased costs; and current plastic solutions face performance bottlenecks.
PPA:
Some PPA grades (e.g., Grivory GV) lack hot water certification; poor long-term creep resistance; difficult to process; poor overmolding performance, requiring additional sealing rings.
PPS is too brittle for thread torque applications.
PPO systems are more costly (require more copper and additional assembly).
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei

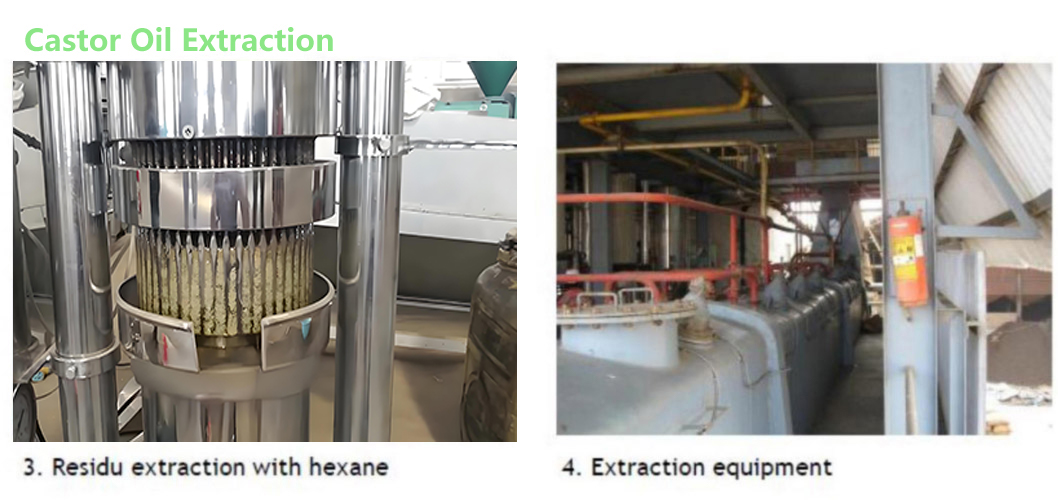

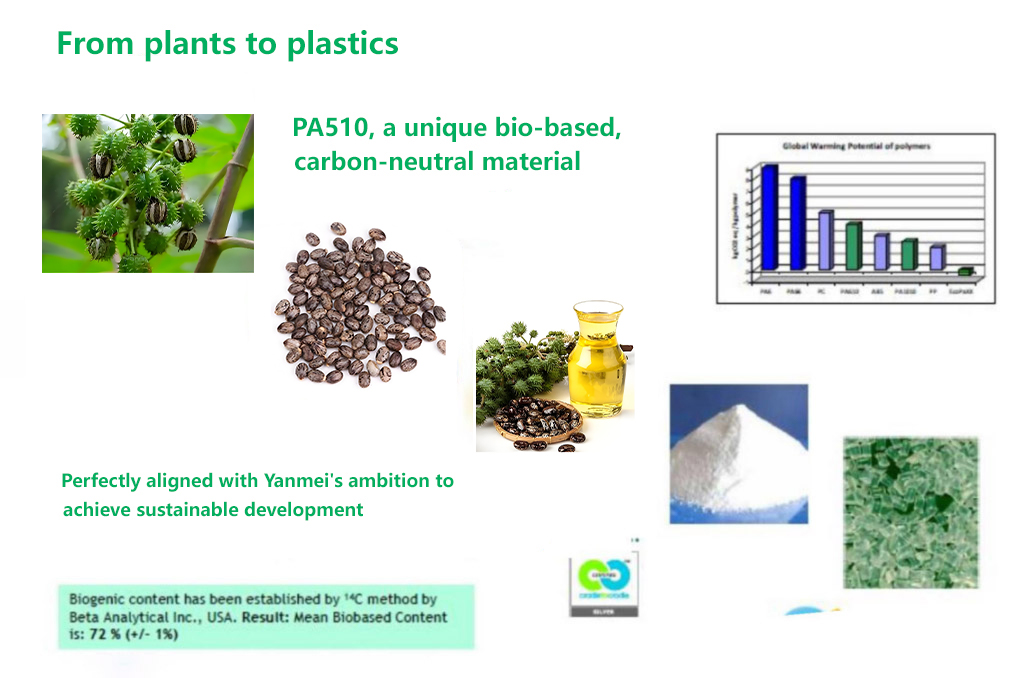

Castor Oil-Based Material

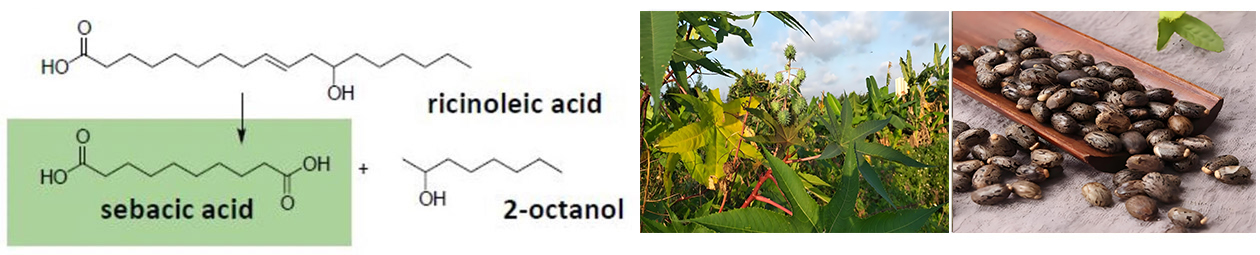

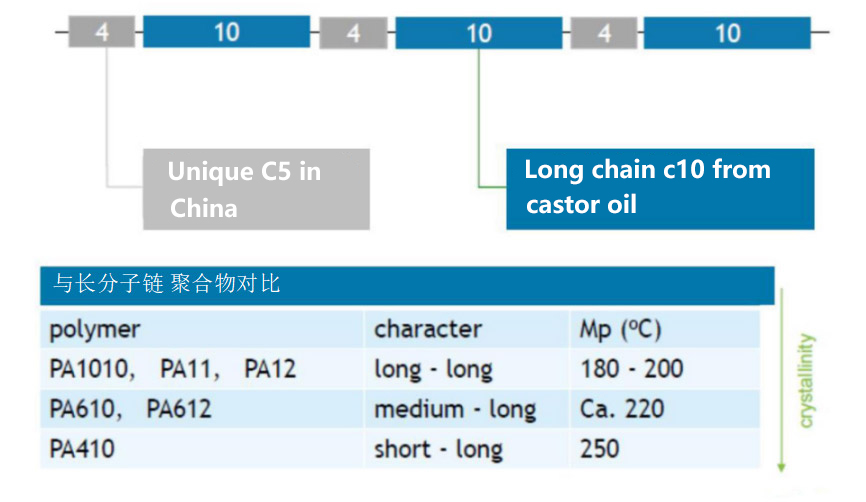

Derived from non-edible castor seeds (avoiding food chain competition), this sustainably sourced material thrives in poor soil conditions, notably in India and Brazil. Castor seeds yield 45%-55% castor oil, rich in ricinoleic acid (85% of fatty acids), which is chemically converted into sebacic acid (a key dicarboxylic acid for bio-based nylon) and 2-octanol. These derivatives, along with 1,4-diaminobutane, serve as critical monomers for synthesizing high-performance polyamides, emphasizing eco-efficiency through non-food feedstock and low-resource cultivation.
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei
The ideal solution comes from Yanmei

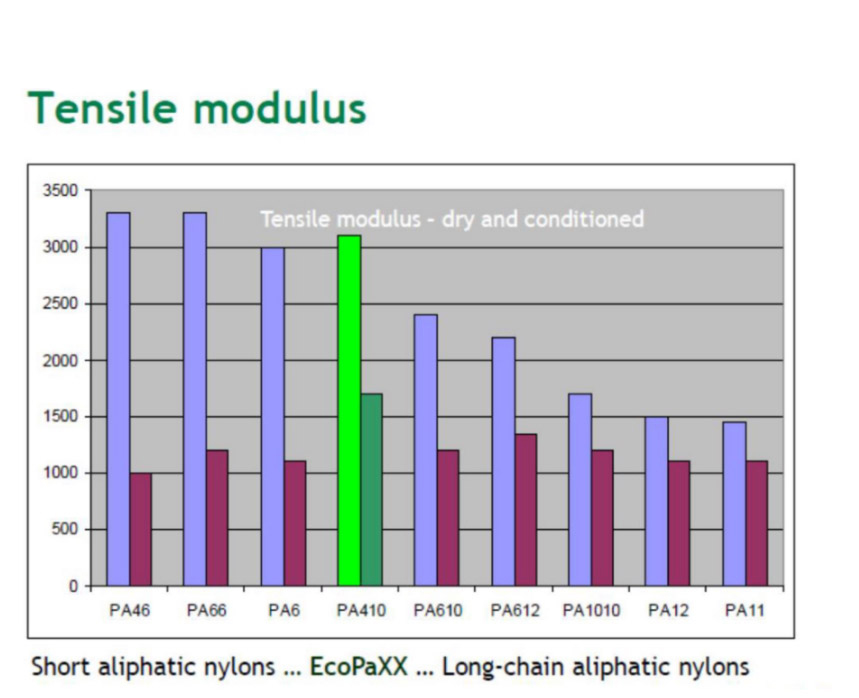

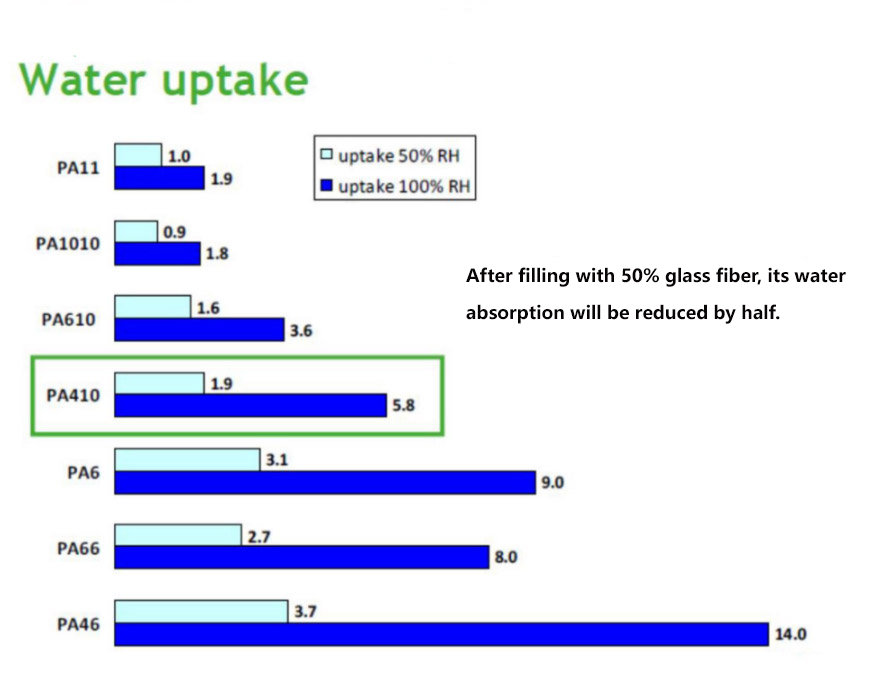

Green Performer™ is a high-performance, long-chain polyamide renowned for its exceptional rigidity-toughness balance, low water absorption (<1%), and outstanding dimensional stability. It exhibits superior resistance to hydrolysis, chemicals, and high temperatures (melting point: 250°C), alongside a broad processing window (230–300°C) and the highest equilibrium modulus among linear polyamides. With a low density (1.05–1.15 g/cm³) and cost-effective production, it is ideal for demanding applications in automotive, electronics, and industrial sectors, combining durability, thermal resilience, and sustainability.
The Ideal Solution from DSM
The Ideal Solution from DSM
The Ideal Solution from DSM
The Ideal Solution from DSM

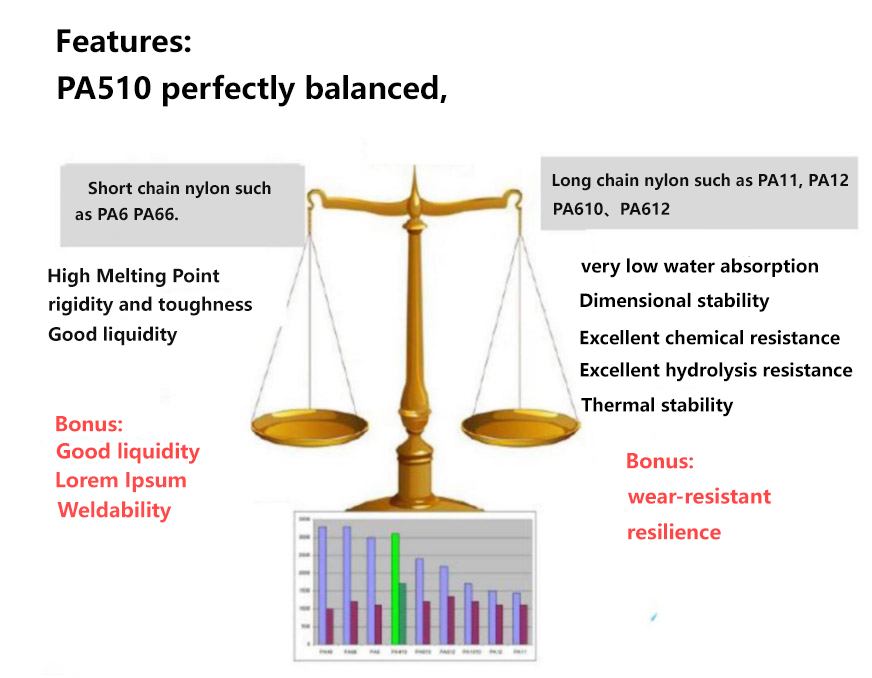

Technical Positioning Summary
Ecopaxx™ Advantages Over Other Polyamides (PA11, PA610, PA612):
Ecopaxx™ outperforms other green polyamides like PA11 and PA610, as well as non-green PA612, by offering a higher melting point (250°C), superior rigidity and toughness (maintained both before and after water absorption), higher bio-based content with carbon neutrality, and faster crystallization rates that significantly reduce processing times. These properties make Ecopaxx™ a more sustainable, efficient, and high-performance choice for demanding industrial applications.
Ecopaxx™ Advantages Over Standard Polyamides (PA6, PA66):

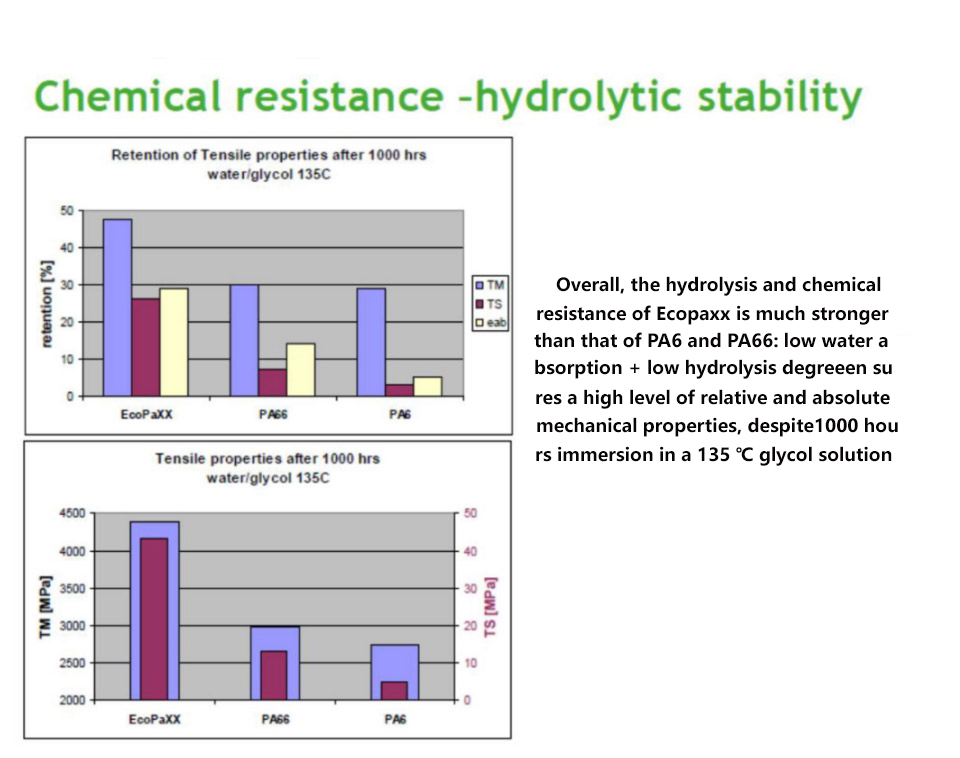

Ecopaxx™ offers a green, bio-based alternative with significantly reduced water absorption and hygroscopicity, higher rigidity and toughness (maintained both before and after water absorption), improved dimensional stability, superior chemical and hydrolysis resistance, and lower density, leading to cost savings. These properties make Ecopaxx™ a more sustainable and high-performance choice compared to traditional polyamides like PA6 and PA66.
Ecopaxx™ Advantages Over Standard High-Temperature Nylons (PPA):
Ecopaxx™ provides a green, bio-based solution with higher toughness, a wider processing window for easier molding, and superior overmolding compatibility for dense and robust multi-material bonding. These features make Ecopaxx™ a more sustainable and versatile option compared to traditional high-temperature nylons like PPA.
Molding Trial Results for Ecopaxx™ Q-X Grades
Molding Trial Results for Ecopaxx™ Q-X Grades
Q-X07879
The overmolding achieves direct bonding that is watertight without the need for any seals. It exhibits extremely high torque resistance, often damaging the copper tooling during testing, and exceptional bending strength, where the copper threads are compromised while the plastic component remains intact.
Molding Trial Results for Ecopaxx™ Q-X Grades
System testing is still ongoing
We can do more
We can do more
YANMEI · Application Cases
Widely applied in industries such as electronics, batteries, automotive, cables, machinery, and drones.
